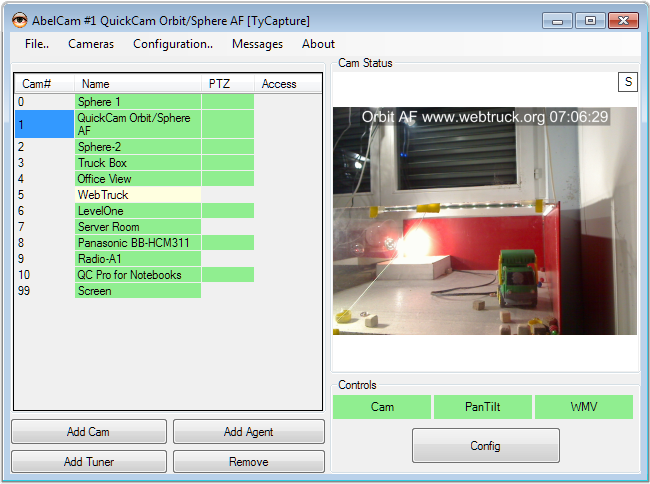

Left Panel

Configured, loaded Cameras

The list shows all configured and loaded cameras.

Cam#: Camera number. Hold the mouse over the number to see the capture interface used.

Name: Camera name, either entered or derived from the capture devices name. Hold the mouse over the name to see the capture interface name.

the name is green when the camera is running, orange in a problem condition, light yellow when the camera is not active

PTZ: shows green when PTZ is enabled

Access: shows dark green for recent access, light green for access a while ago. The text ( img and/or ptz ) shows the type of access. Hold the mouse over this field to see the cameras configuration folder.

buttons to add and remove cameras and agents

Right Panel

selected camera

Use the S button to store a single shot

controls for camera

Cam / PanTilt / WMV: click to change state

Config click to configure selected camera
