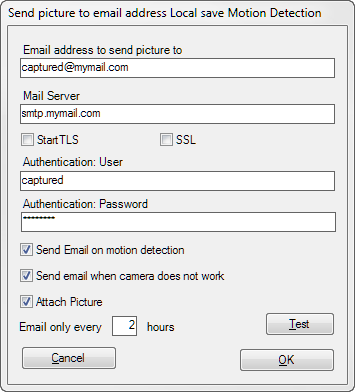

This configuration form exists for both Local Save Motion Detection and FTP Motion Detection
Mail Server:if your mail server does not use the standart port 25, use the following form:
mail-server:port-number
eg
smtp.mymail.com:995
StartTLS / SSL: use these checkboxes when your smtp server requires a encrypted connection to send mail
Authentication User/Password: enter the login information for the smtp server if required
Send Email on motion detection: check this to activate email on motion detection
Send email when camera does not work: check this if you want to be notified about camera failures
Attach Picture: check this if you want the image with detection motion to be included in the email
Email only every x hours: enter a value > 0 if you don't want emails to be sent on every motion detected. Fractions of hours are ok (eg. 0.25 = 15 minutes)
